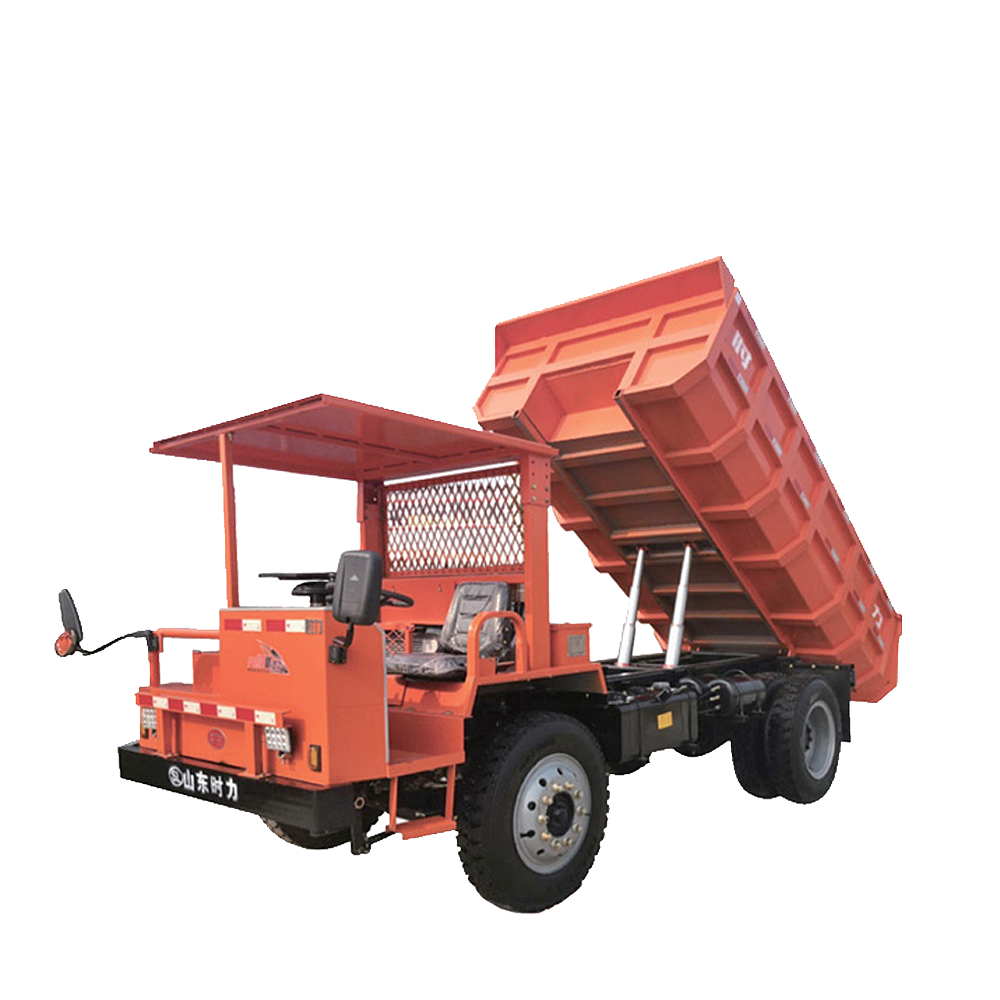

MT12 Diesel Dump Truck
Engine Power
118kW
Load Capacity
12 tons
Cargo Box Volume
6 m3
The MT12 operates on diesel fuel and is equipped with a Yuchai4105 Medium-Cooling Supercharged engine, providing an engine power of 118KW (160hp). The vehicle features a 530 12-speed high and low-speed gearbox, DF1061 rear axle, and SL178 front axle. Braking is achieved through an automatically air-cut brake system.
Main Technical Parameters
| Product model | MT12 Mining Dump Truck |
| Fuel Type | Diesel |
| Engine Model | Yuchai 4108 intercooled turbocharged |
| Engine Power | 118kW(160HP) |
| Gear Box Model | 10JS90 heavy-duty 10-speed |
| Rear Axle | DF153 |
| Front Axle | DF153 |
| Braking System | Air brake |
| Climbing Ability | 12% |
| Tire Model | 900-20 radial tire (Double rear tire) |
| Overall Dimension | (L)5700mm*(W)2250mm*(H)1990mm |
| Cargo Box Dimension | (L)3800mm*(W)2100mm*(H)800mm |
| Cargo Box Plate Thickness | (Bottom)10mm*(Side)5mm |
| Cargo Box Volume (m3) | 6 |
| Load Capacity (tons) | 12 |
