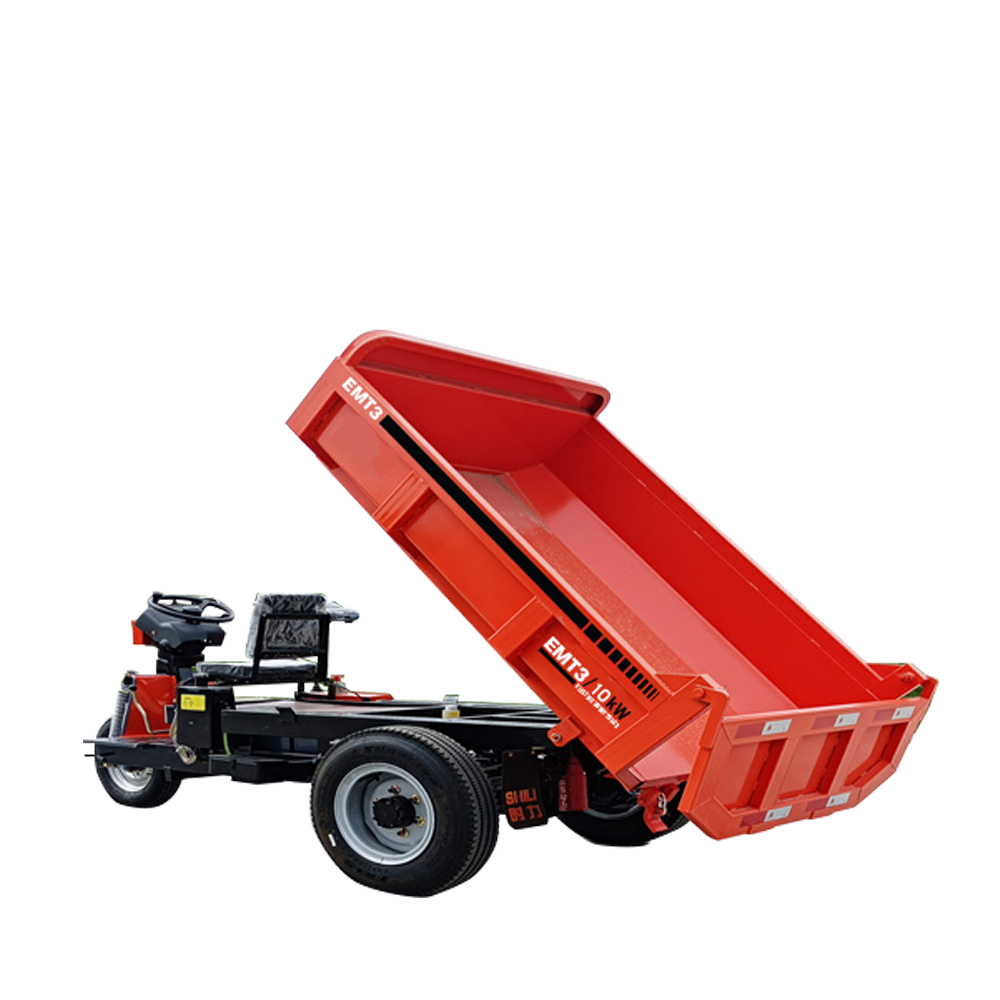

EMT3 Electric Dump Truck
Motor Power
10kW (AC)
Load Capacity
3000kg
Cargo Box Volume
1.2 m3
The EMT3 features a cargo box volume of 1.2m³ and a rated load capacity of 3000kg, making it suitable for heavy-duty hauling in mining operations. The truck can unload at a height of 2350mm and load at a height of 1250mm. It has a ground clearance of 240mm, allowing it to navigate rough terrain.
Main Technical Parameters
| Product model | EMT3 Electric Dump Truck |
| Batteries | 12 pieces, 12V,105Ah maintenance-free |
| Voltage | 72V |
| Motor Power | 10kW (AC) |
| Gear Box Model | 530(12-speed high-low range) |
| Turning radius | ≤ 4200mm |
| Control system | Intelligent controller |
| Climbing Ability | ≤ 6° |
| Tire Model | (Front)600-14 / (Rear)700-16(Radial Tire) |
| Overall Dimension | (L)3800mm*(W)1380mm*(H)1250mm |
| Cargo Box Dimension | (L)2200mm*(W)1380mm*(H)450mm |
| Cargo Box Plate Thickness | (Bottom)5mm*(Side)5mm |
| Cargo Box Volume (m3) | 1.2 |
| Load Capacity | 3000kg |
